Ref MI250S

12V/500A charge-start circuit controller

The MI250S controls the charging, starting and preheating circuits of a 12-volt vehicle. It also incorporates a device for saving equipment memories (clock, car radio, etc.) while connected to the vehicle.

Diagnosis

Agricultural

Construction and handling

Motocycle

Parks and gardens

Voitures particulières

Applications, drivers and documentation

The MI250S simultaneously measures battery voltage, measures current up to 500A with indication of direction (battery charge or discharge), memorizes overvoltage, memorizes minimum voltage and maximum current during starting, diagnoses glow plugs before dismantling, and indicates leakage current greater than 30 mA.

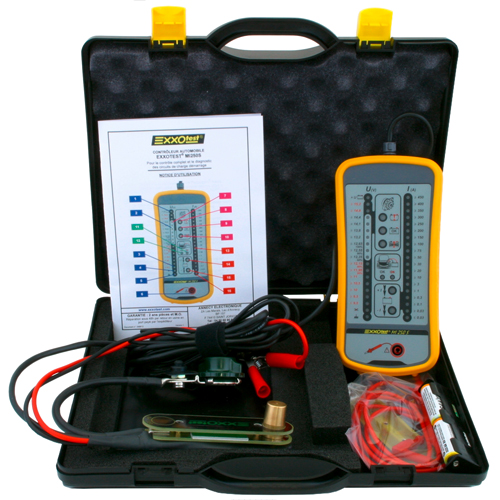

Case with shockproof belt (200 x 95 x 47 mm), supplied in storage case with spare shunt plate, measuring lead and operating instructions.
