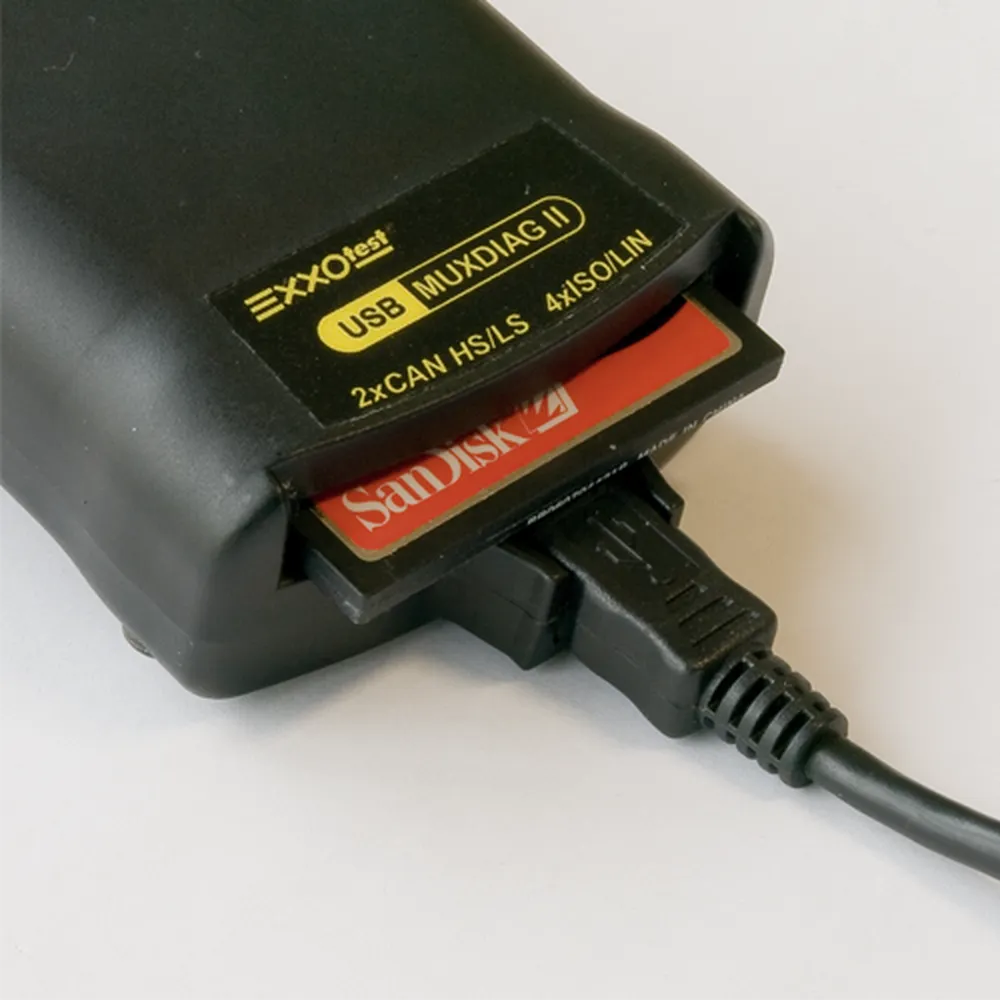

Ref DLx-MUXDIAG-II

CAN LIN data logger in diagnostic socket format

The DLx-MUXDIAG-II is a compact data logger particularly suited to on-road applications.
Recorders
Applications, drivers and documentation

The DLx-MUXDIAG-II is a compact recorder particularly suited to on-board use. It records data simultaneously on 1 CAN High Speed or Low Speed link, 1 CAN HS link, 2 ISO9141 links, 2 LIN links and 2 ANA/TOR inputs. Supplied with a 16Gb memory capacity (expandable), a wired remote control and the Exxotest Data Logger Control application for Windows OS, for configuring logging sequences and retrieving data.

The pinout diversity of the SAE J1962 16-channel “OBD” connector, caused by the assignment of non-standardized channels, is covered by several variations of the USB-MUXDIAG-II product, specifically adapted to PEUGEOT, CITROEN, RENAULT and FORD vehicles.

Recording unit supplied in a case with :

  • USB cable
  • Wired remote control
  • High-performance 16GB memory card
  • DLC Data Logger Control application and license
  • Development kit (software libraries, examples, … )
  • USB drivers
  • User documentation
