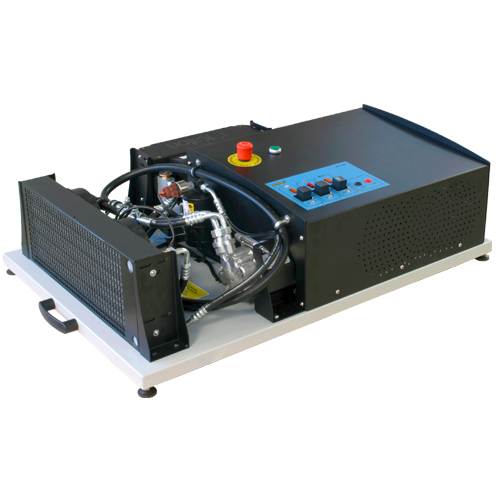

Ref MT-C7002

Cold production model with real R134 gas elements.

The MT-C7002 model is designed for the study and analysis of an automotive R134a gas air-conditioning system, with real components and a mobile application for creating faults.
Air conditioning
Agricultural
Construction and handling
Transport vehicles
Voitures particulières
Applications, drivers and documentation

The MT-C7002 model is designed tostudy and analyze an automotive automatic air-conditioning system.

It integrates automotive components to form a complete, fully functional cold loop:

  • Sanden SD6C12 variable-displacement R134a air-conditioning compressor (external control by RCO)
  • Condenser unit with motorized fans,
  • Evaporator block with pulser and thermostatic expansion valve,
  • Diam 64H120 filter drier with 3-stage pressure switch,
  • 2 HP and BP filling valves
  • Set of 4 hoses for connecting air-conditioning units, with zinc-plated steel connector, M6, M8 and M10mm diameter hose, depending on the situation.

Supplied with transport and storage case, user documentation and practical instructions.
