Ref DT-M008

Educational module: Automotive alternator

Automotive alternator" training module, star or delta wiring, diode bridge assembly.
Measurement
Agricultural
Construction and handling
Motocycle
Nautisme
Parks and gardens
Transport vehicles
Voitures particulières
Applications, drivers and documentation

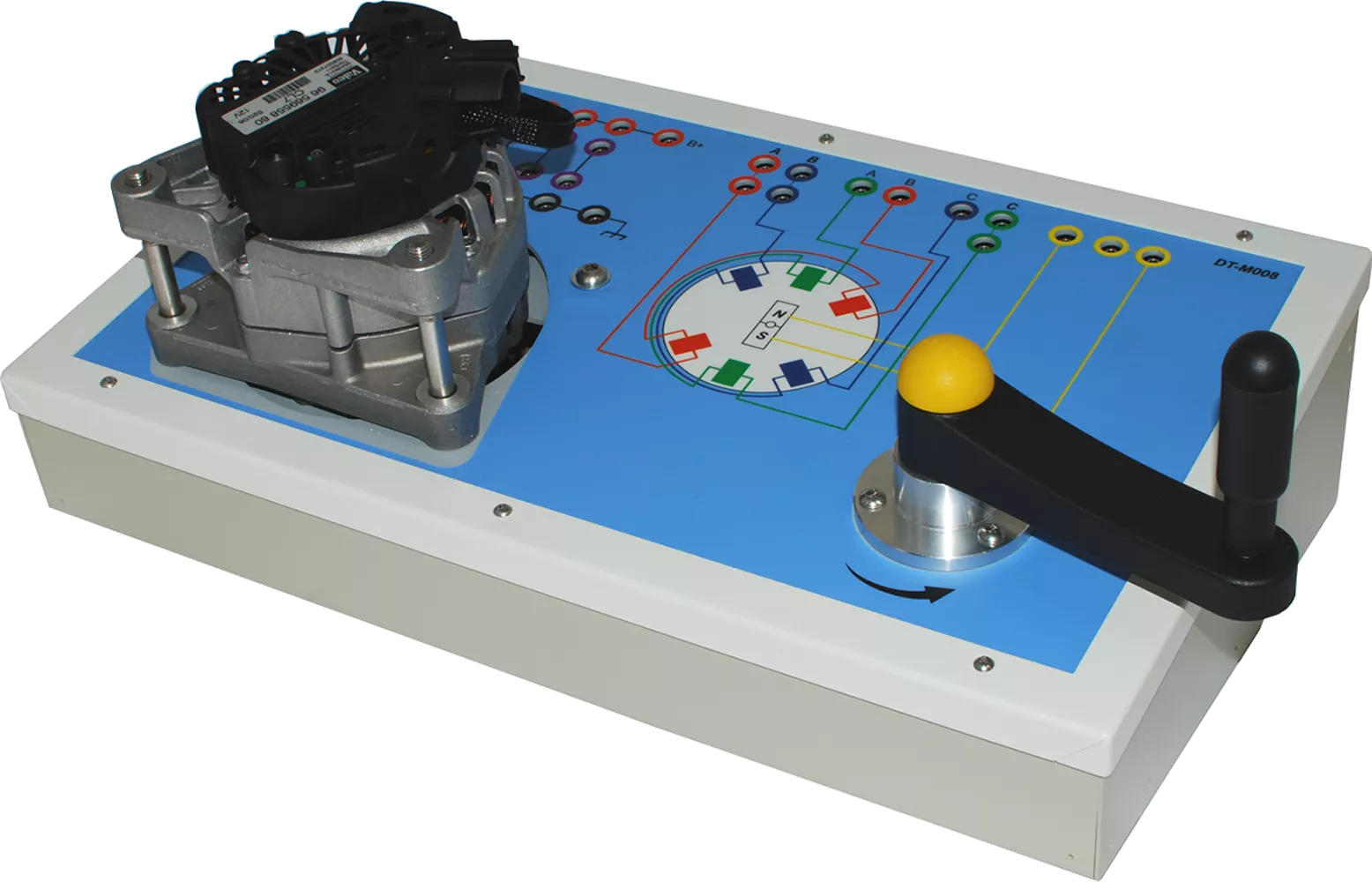

The DT-M008 module enables you tostudy and analyze the transformation of mechanical energy into electrical energy.

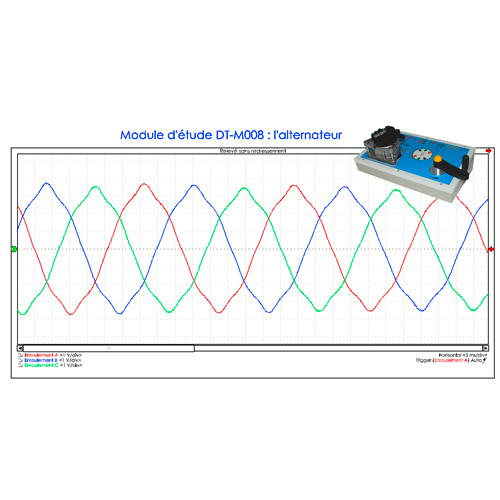

It can also measure alternating or rectified current (star, delta and diode bridge). Using the sockets on the front panel and the wires supplied, the learner will make the various connections. Then simulate motor rotation using the handle to record the various signals studied. All measurement points are accessible via sockets and can therefore be used with a multimeter or oscilloscope.

The DT-M008 module is supplied with :

  • User documentation
  • Practical work
  • Power supply 12V / 10A
