Ref DT-M010

Multiplexing" educational module

Multiplexing" training module, CAN HS, LS and LIN multi-networks
Communication interfaces
Agricultural
Motocycle
Transport vehicles
Voitures particulières
Applications, drivers and documentation

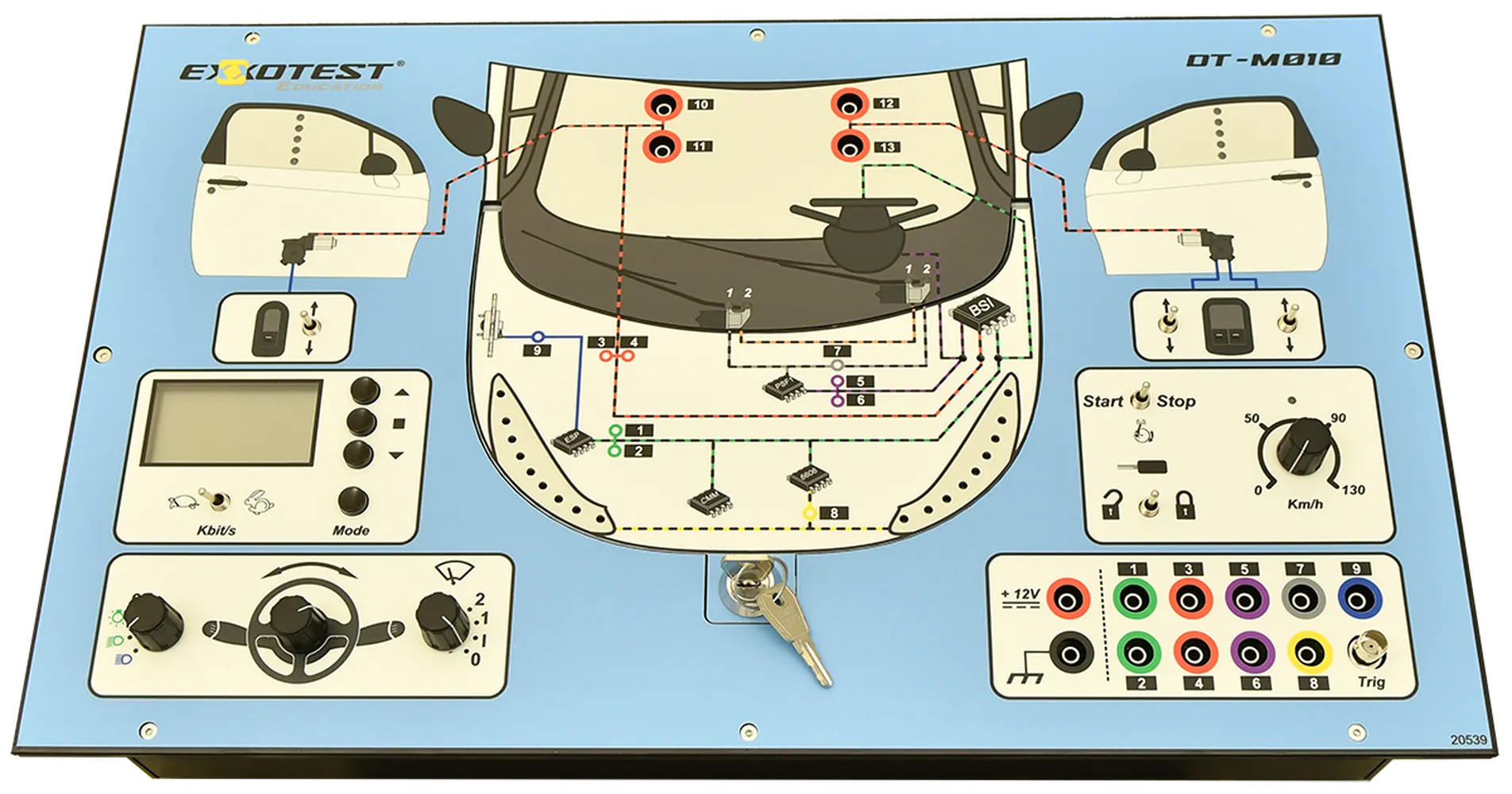

The DT-M010 module is a teaching aid forstudying and understanding multiplexed networks.

Networks accessible on the module: 1 CAN Inter Système 500 kbits/s, 1 CAN Low Speed Carrosserie 125 Kbits/s, 1 CAN Low Speed Confort 125 Kbits/s, 1 LIN Essuie Vitre 19200 bits/s, 1 LIN Feux tournants 19200 bits/s.

The DT-M010 module is supplied with :

  • User documentation
  • Practical work
  • Set of cords for 4 mm sockets
  • Adjustable power supply from 5 to 29 V / 3A
