Measurement acquisition system
REFLET8 can simultaneous acquire data from 12 slow channels and 4 fast channels.
It is used in conjunction with REFLET software.
Reference: REFLET8
Category: Measurement
Activity: Training institutions
Downloadable documents :
Datasheet FR Datasheet ENProducts details

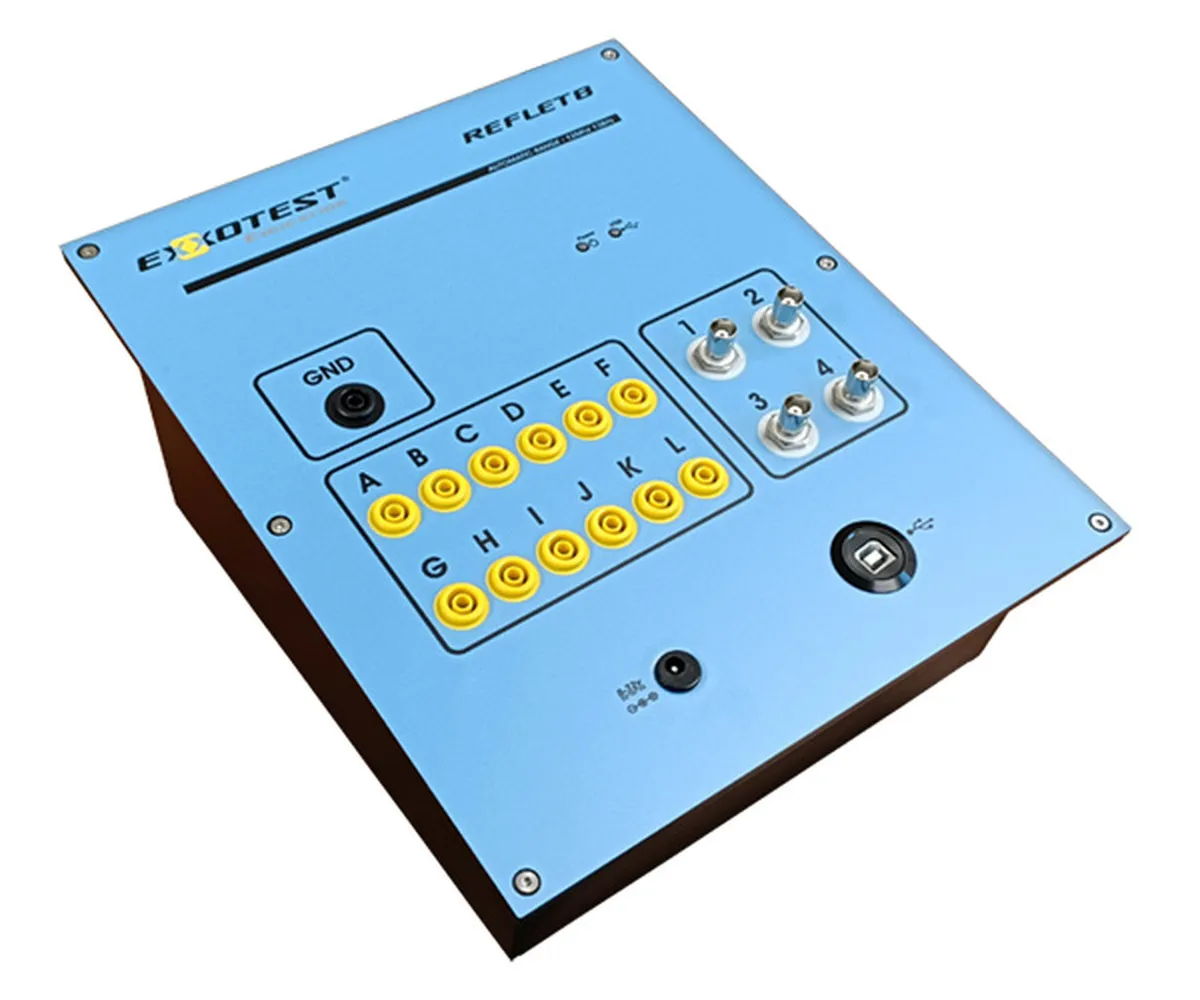

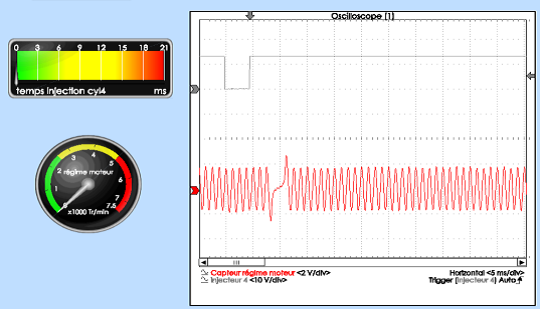

REFLET8 is a measurement interface unit used to acquire electrical signals and display them on a PC using the associated app, REFLET.
Simultaneous acquisition of 12 analog/digital channels and 4 oscilloscope channels with configurable trigger, Bandwidth of 1 MHz, Sampling rate of 100 ks/s, 12-bit resolution,
Measuring range of up to ± 128 V, Protection ± 200 V,
Connection to a PC via a USB link.
Contents
The REFLET8 unit is supplied with:
- The REFLET PC app
- USB drivers for Windows OS (32-bit Vista or more)
- user documentation
- a USB cable
- a set of leads with 4 mm banana plugs
Ordering information
REFLET8
